Wire Links & Vises

Availability:
Wire Links & Vises
Wire Links & Vises
Wire Links & Vises
Wire Links & Vises
Product Properties
Product Properties
Commercial Buyer Specialty Stores, Super Markets, Convenience Stores Service omline support
Place of Origin Zhejiang, China Product name wire vise
Brand Name CS Or Customized Key words wire vise,quickvise,wirevise,anchor wire vise
Model Number 5056,5058,5062,5064 Customized Color Color Availale
Metal Type Aluminum Surface treatment anodized, polishing, customized
Frame Finishing Not Coated Certification ISO9001, CTI, ROHS
Feature Easily Assembled Keywords Farm Fixed-knot Field Fence
Usage Garden Fence, Highway Fence, Sport Fence, Farm Fence Supply Ability 1000000 Piece/Pieces per Month
Type Fencing, Trellis & Gates, security fence, Driveway Gates,
Fence Accessories, Fence Gates, Fence Hardware,
Fence Panels, Fence Posts, Fence Rails, chain link fence,
Fence Post Caps
Packaging & Delivery
Packaging Details
package informations
1,With plastic bag,with pearl-cotton package.
2,To be packed in cartons.
3,Use glues tape to seal cartons.
4,Deliver out by DHL,FEDEX.
Or according to customers' requirement.
Port Ningbo, Shanghai, Shenzhen

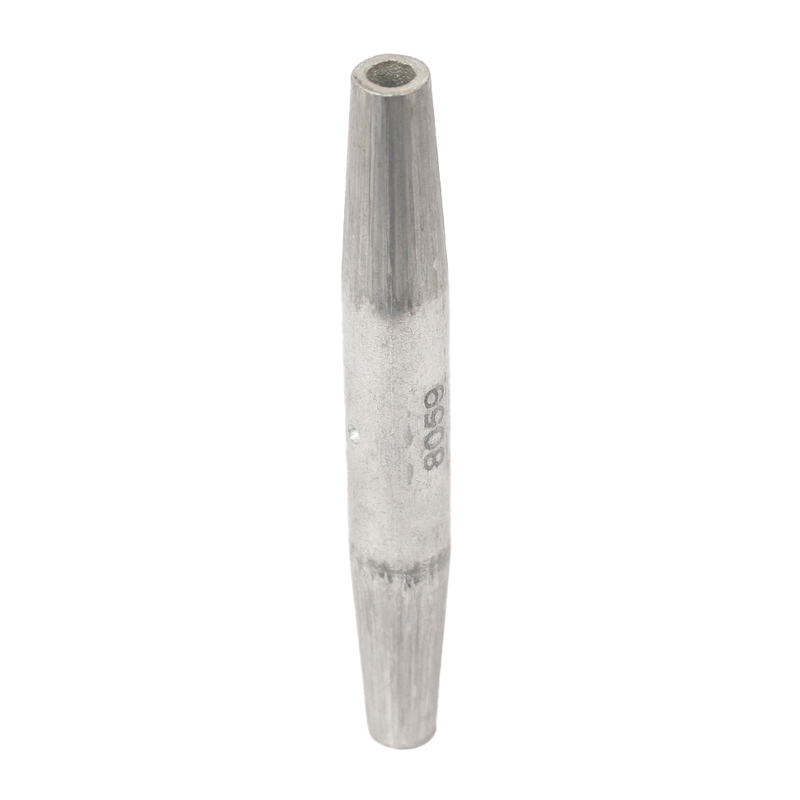

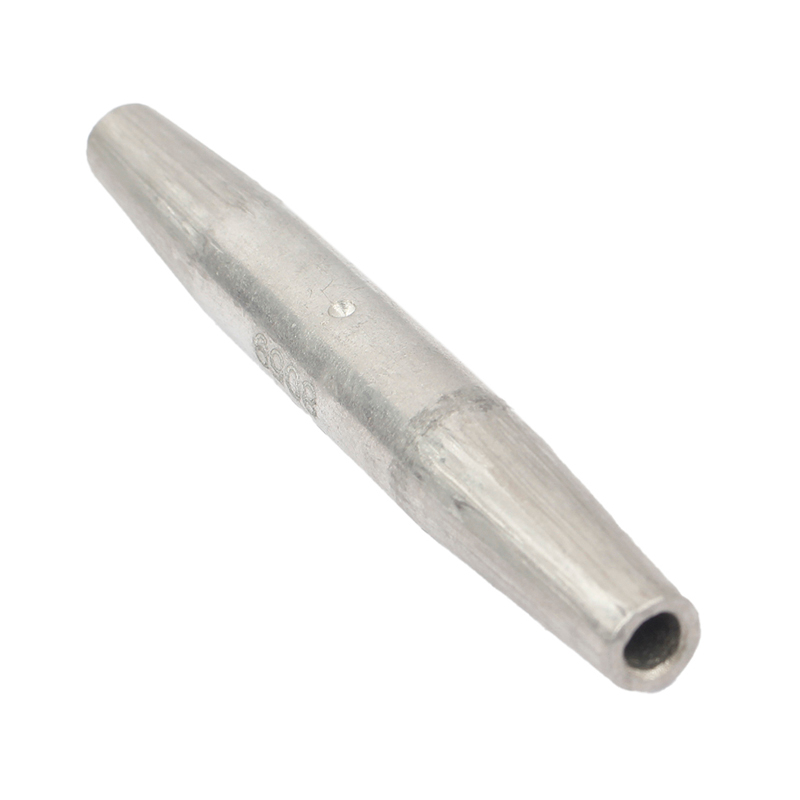

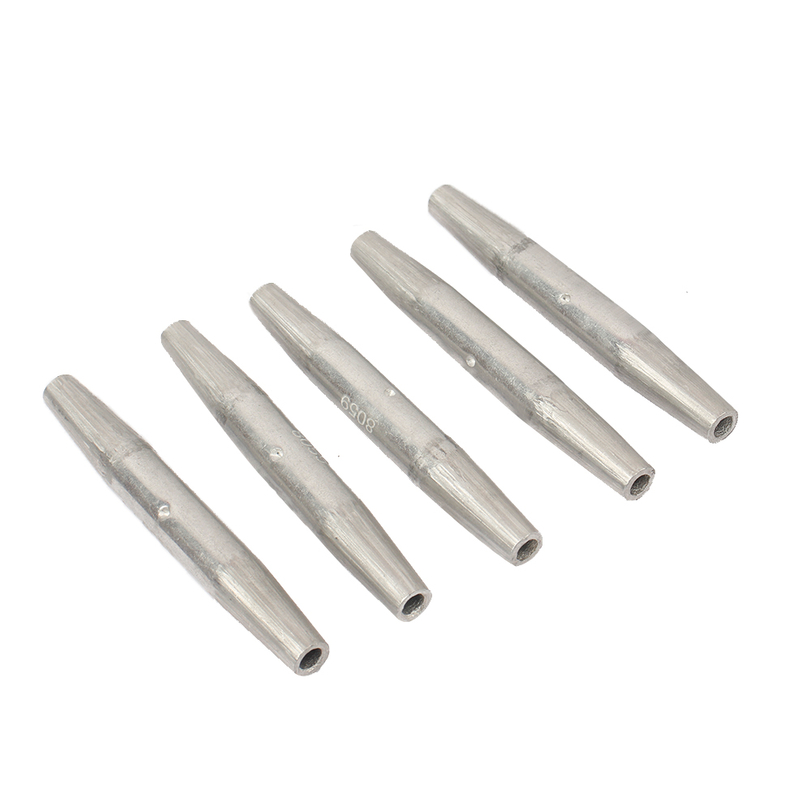

WIRE VISE

The WIRE VISE can fasten H-T wires without a tool. Merely insert the wires into the holes. The wires are gripped by spring-loaded clamps which tighten more securely as the wires are pulled harder, holding the wires at over 80% of the breaking strength of the wire itself.

To use the WIRE VISE, drill a 3/8 inch hole through the end post and pull the wire through the hole. Then put the WIRE VISE on the wire and tap it lightly into the hole. If final tensioning is to be done with the WIRE VISE, it is recommended to pull the wire to the end post with a chain grab, then push the slack through the hole and WIRE VISE. A special tightening tool (TVT) is also available for use with the WIRE VISE. It grabs the wire which has been threaded into the WIRE VISE and a simple prying action pulls the wire through the FASTVISE to the desired tension.


HOW TO USE

Our Wire vises keep your wire tightened preventing it from slipping back and conveniently securing it to the post.Easy to use, just insert the wire into the long narrow end of the vise towards the plate end and pull from the other side. Once inserted the wire holds in place and can only be moved in one direction.Anchor vises will save you time and money when it comes to tightening wires. No need to replace wires or use joiners to tighten them. Once you install your anchor vises you will only need to pull the wires when you feel they need tightening. They will hold in place without slipping back.NOTE: The higher the gauge, the thinner or more narrow the wire. Various fruits and vegetables that can be grown with trellis systems using wirevises are tomatoes, beans, cucumbers, peppers, baby pumpkins, summer squash of all types, small melons, grapes, raspberries, blackberries, gooseberries, passion fruit, kiwi, and even hops. The most recommended and most popular gauge wire for creating vineyard trellis systems is 12.5 gauge high tensile wire.our 8 to 11 gauge wire vise can be applied to build trellises, vineyards, fences or trees, providing you with an optimized experience for your garden work

The anchor vise may be used in orchards, vineyards, arbors as well as farm fencing. It is suitable for any structure that requires high-tension wire.


微信图片_20220525193352

Item NO:

Item(normal) Material A(mm) B(mm) C(mm) Wire range Force NOTE
5056 Al6061 34 30 31 2.0-2.5mm 450-500kg 图片1
5058 Al6061 37 30 32 2.5-3.0mm 450-500kg
5062 Al6061 57 32 48 3.0-3.5mm 450-500kg
5064 Al6061 57 32 49 3.5-4.0mm 450-500kg
5059(with wire) Al6061 150 40 40 2.5-3.0mm 450-500kg 图片2
5057(without plate) Al6061 91 11

450-500kg 3


Item(specical) Material A(mm) B(mm) C(mm) Wire range Force NOTE
8056 Al6061 34 30 31 2.0-2.5mm 650-700kg 图片1
8058 Al6061 37 30 32 2.5-3.0mm 650-700kg
8062 Al6061 57 32 48 3.0-3.5mm 650-700kg
8064 Al6061 57 32 49 3.5-4.0mm 650-700kg
8059(with wire) Al6061 150 40 40 2.5-3.0mm 650-700kg 图片2
8057(without plate) Al6061 91 11

650-700kg 3



Use Scene Images


场景图



Packing


包装图
